View Builder: Components

This article captures all of the View Builder's components within the App Designer. Notably, most components can further be modified by placing them into your view, selecting them, and adjusting the component settings on the right.

Basic Building Blocks

Component	Description	Example
Card	Group elements together in a box with rounded corners and outer margin.
Section	Group elements together in a box with no left/right margin.
Button	Performs an Action (see below) when selected.
Action	Performs an action when selected. One of the more common component types used. Action options include: Start Survey: Launches a survey specified by its Name (not Display Name). Does not require a task to exist. Open Secondary View: Opens the specified Secondary View using its Unique Key. Open Custom View [Legacy]: Launches a custom MyDataHelps view. Should use Open Secondary View (see above) instead. Open Library View [Legacy]: Launches a MyDataHelps library view. Recommended to create your own view builder view. Open URL: Opens the specified URL. Show Tab: Moves the user to the specified Tab using the Unique Key for the tab (under Advanced in the Edit Tab menu). Dismiss / Close View: Closes the current view if a modal. Go Back: Navigates the participant if the current view is nested and not a modal. Show Google Fit Settings: For Android, opens up Google Fit settings.
Text	Supports markdown
Graphic	Image or icon

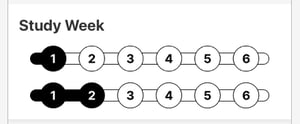

Progress Bar	Supports piping for numerator and denominator
Conditional	Show/hide content based on participant information.
Grid	Lay elements out horizontally

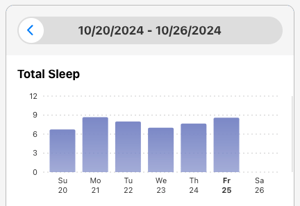

Date Range Coordinator	Allows paging through dates for date-based components.

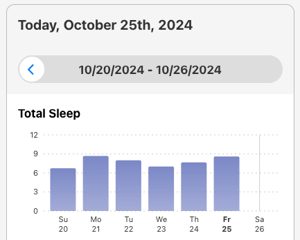

Date Range Title	Displays title of current date range inside a date range coordinator
Rotating Component Coordinator	Renders a single child (component) at a time based on an interval.

Surveys

Component	Description	Example
Survey Task List	Dynamic list of complete/incomplete survey tasks
Inbox Item List Coordinator	A coordinator that allows for synchronization of Inbox Item Lists.	N/A
Inbox Item List	A configurable list of Inbox items

Notifications

Component	Description	Example

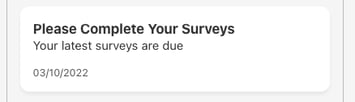

Most Recent Notification	Displays the most recent notification

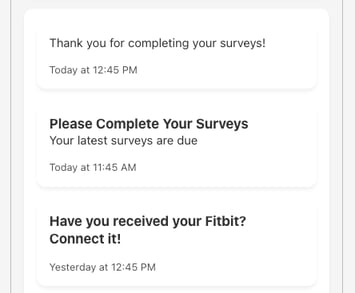

Notification List	List of notifications

Electronic Health Records

Component	Description	Example
Connect EHR	Prompts the user to connect to their electronic health records.
Provider Search	Search interface for a participant to connect their provider or health plan.
Apple Health Records Sync	Facilitates having a participant connect to their Apple Health Records.
View EHR	Links the user to the Health & Wellness Dashboard if they have an EHR connected.
Lab Results Preview	Preview list of lab results in EHR data. Links to full lab history.
Blood Type	Display Blood Type if present. Links to Medline info.
Medications Preview	Preview list of medications in EHR data. Links to full medication list.
Allergies Preview	Preview list of allergies in EHR data. Links to full allergies list.
Immunizations Preview	Preview list of immunizations in EHR data. Links to full immunization history.
Reports Preview	Preview list of reports in EHR data. Links to full report history.
Conditions Preview	Preview list of conditions in EHR data. Links to full condition list.
Procedures Preview	Preview list of procedures in EHR data. Links to full procedure history.

Devices / Wearables

Component	Description	Example

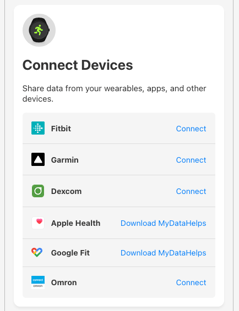

Connect Devices Menu	A menu of all device connections available for the participant to select.
Connect Dexcom	Prompts the user to connect their Dexcom.
Connect Fitbit	Prompts the user to connect their Fitbit.
Connect Garmin	Prompts the user to connect their Garmin.
Connect Oura	Prompts the user to connect their Oura.
Fitbit Devices	Displays the list of connected Fitbit devices.
Garmin Devices	Displays the list of connected Garmin devices.
View Device Activity	Links the user to the standard device activity dashboard if they have a device connected.

Account

Component	Description	Example

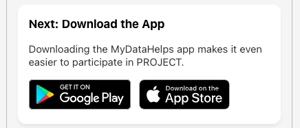

App Download Prompt	Prompts the user to download the app if they are using a web browser.
External Accounts Loading Indicator	Displays a loading indicator while data from external accounts (e.g., Fitbit or EHR) is retrieved
External Accounts Preview	List of external accounts the user has connected. Opens the full list when connected.

Data Visualization

Component	Description	Example
Micro Trend	Displays activity relative to thresholds or 30 day average for single data type
Relative Activity	Displays activity relative to thresholds or 30 day average
Relative Activity Day Coordinator	Day navigation view that shows relative activity
Daily Data Chart	Week / month chart of daily data
Daily Data Goal	Displays progress against a goal
Blood Pressure	Configure against sensor and/or survey data to visualize Blood Pressure.
Latest Blood Pressure Reading	Displays the participant's most recent blood pressure reading.
Severity Calendar	Configure against survey data to show self-reported severity data.
Survey Answer Chart	Week / month chart of numberical survey responses.
Goal	Displays progress toward a goal.
Insight Matrix	Compares values from multiple daily data types in tabular format.
Intraday Heart Rate Chart	Shows the heart rate for the selected day.

Engagement

Component	Description	Example
Points for Badges	Displays badges earned for activities

Symptom Shark

Please also refer to the Symptom Shark article.

Component	Description	Example
Log Today	Displays the current day's symptom log or prompts the user to complete it.
Log Entry List	Infinite scrolling list of past log entries
Visualization Coordinator	Provides data and context for calendar, histogram, and other visualizations
Calendar	Calendar of Symptoms and Treatments for the month. Note: Requires the Visualization Coordinator.
Symptom / Treatment Histograms	Histograms of Symptoms and Treatments for the month. Note: Requires the Visualization Coordinator.
Overall Experience Chart	Chart of overall experience for the month. Note: Requires the Visualization Coordinator.
Report Builder	Allows a participant to build a custom PDF report of their Symptom Shark data.

Glucose & Meals

Component	Description	Example
Glucose Day Coordinator	Allows for paging through and selecting days while presenting summary infographics.
Glucose Chart	A chart for visualizing glucose readings against steps, sleep, and meals.
Meal Coordinator	Shares a self-reported meal log and selected meal across components.	N/A
Meal Log	A simple self-reported meal log management component. Note: Requires the Meal Coordinator.
Meal Buttons	A button panel used to add different types of meal log entries. Note: Requires the Meal Coordinator.
Meal Editor	A simple self-reported meal log editor.
Meal Analysis Preview	A component that displays pending meal analyses, allows for one-at-a-time review, and can open a full meal analysis review worklist.
Stress Level	A slider bar for recording daily stress levels.
